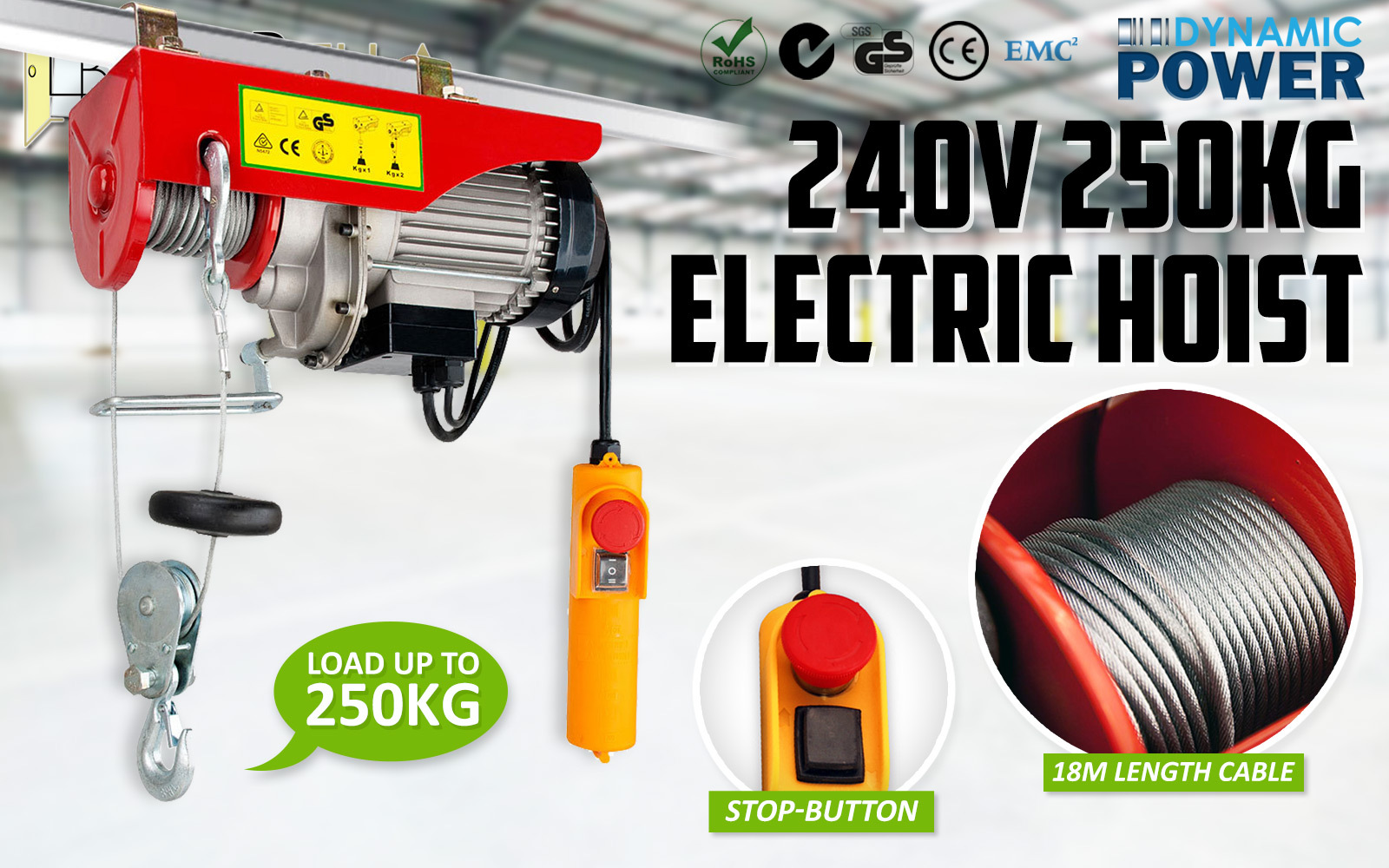

510w 125/250KG Electric Hoist 240V

Details

Stop busting your ring spanner trying to lift things the hard way!

Make your life a breeze and keep the health and safety geezer happy at the same time.

This electric winch (hoist) can be bolted to an overhead beam or engine lifter to make short work of any lifting jobs you have around the workshop.

The Electric Hoist is powered by a Lateral-Magnetic Single-Phase capacitance motor and fully featured compact lifting solution you've been looking for. Capable of reaching a maximum height of 18m, it carries a maximum load of 250kgs using a clever dual pulley and is powered by a 510W commercial cycle motor.

Product Features

Powered By Lateral-Magnetic, Single-Phase Capacitance Motor
Single Rope Capacity 125kgs / Double Rope Capacity 250kgs used to Hoist Heavy Things
Upwards and Downwards Control at your Fingertips
Capable of reaching a maximum height of 18m

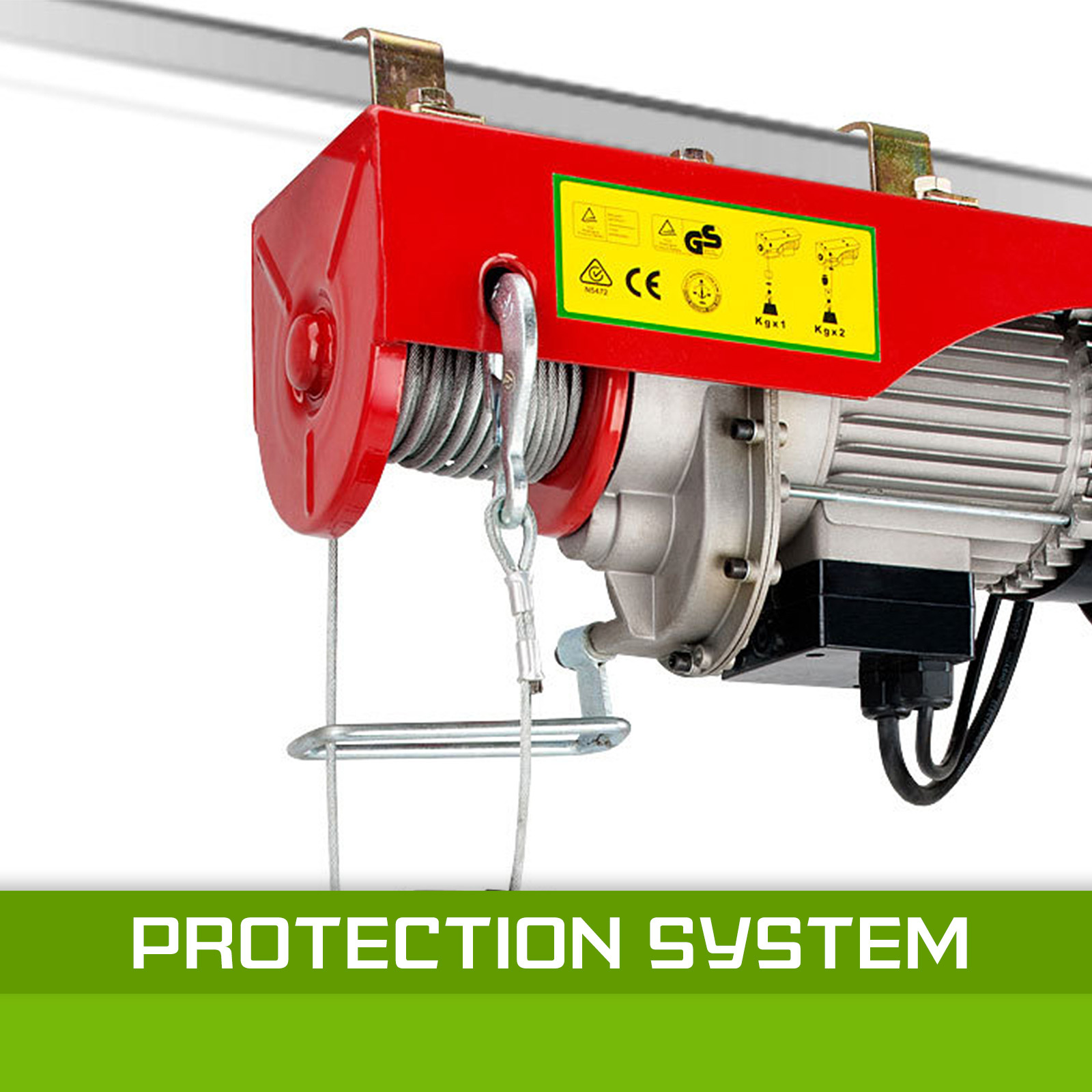

Emergency Stop Switch, Anti-Heat Device and Limit Device to cut the power supply when the hoist is hyper-extended to ensure operational safety
Lift-Descend-Reset and boasts an impressive lift speed of 10 meters/min when utilizing single line lift or 5 meters/min when utilizing double line lift

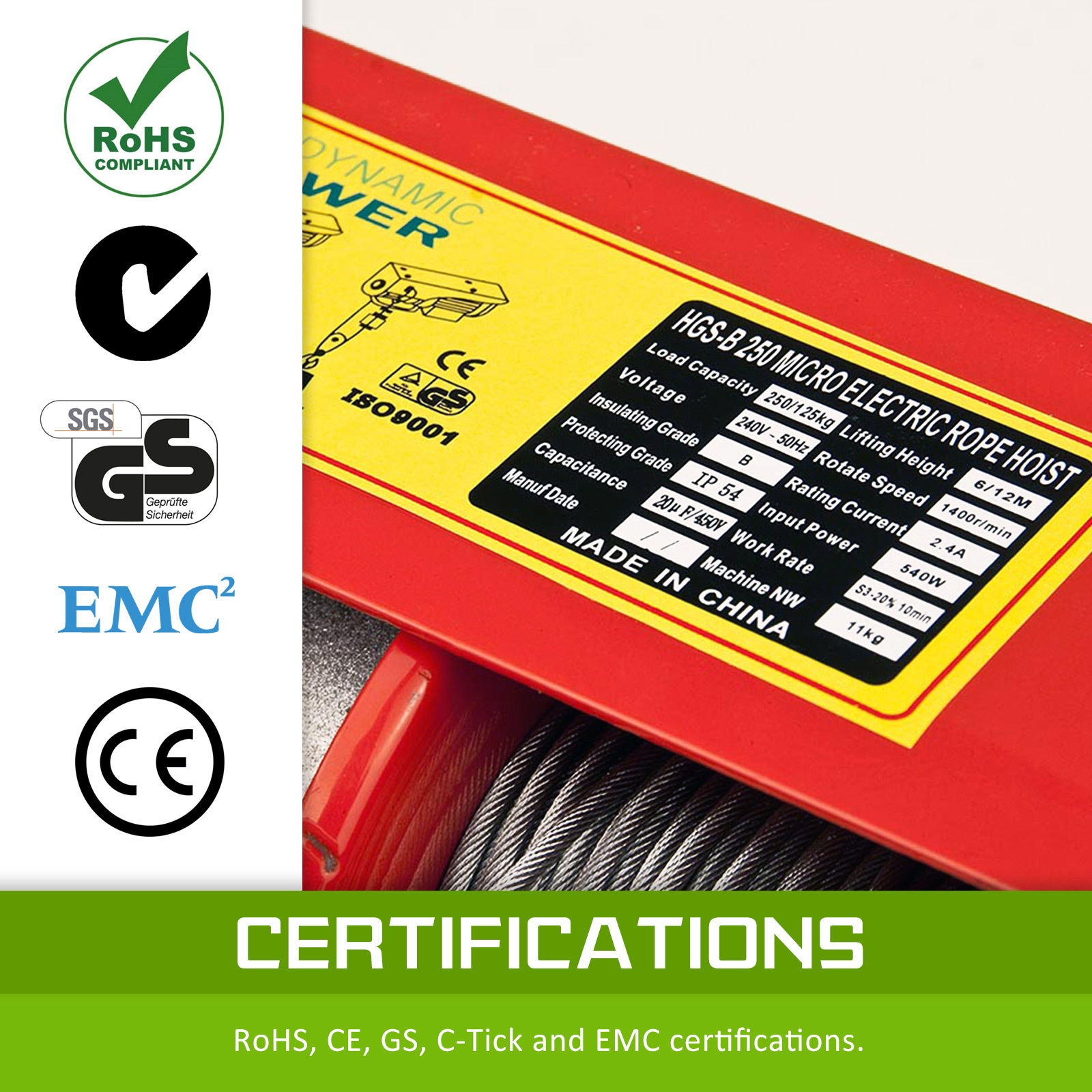

Cert: CE, GS and EMC Approval
Note: The Electric Hoist is only suitable for vertical lifting

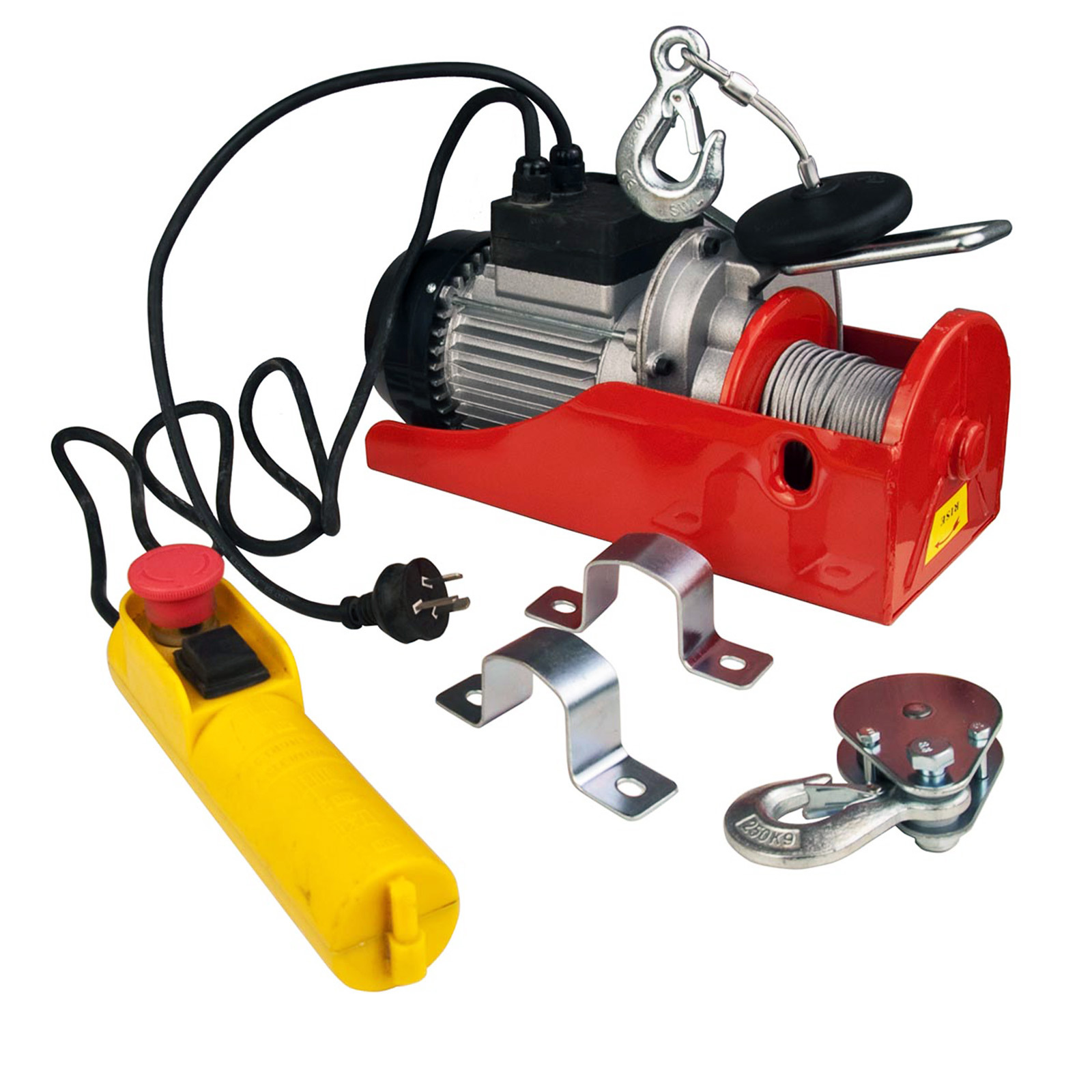

Package Included

Hoist Unit
Remote Control
Hook
Fixed Mount
Screws and Washers
Instruction Manual

Specifications

Brand: Dynamic Power
Single Rope Capacity: 125Kg
Double Rope Capacity: 250Kg
Max. Spindle Stoke:Lifting Height(Single Rope): 18m
Max. Spindle Stoke:Lifting Height(Double): 9m
Lifting Speed(Single Rope): 10m/min
Lifting Speed(Double Rope): 5m/min
Cable Length: 18m
Cable Diameter: 3mm
Switch Cable Length: 1.7m
Resister Cable: >=800Kg
Main Voltage: 240V/50Hz
Motor Performance: 510W
Service: S3 20%/10min
Gross Weight: 12kg
