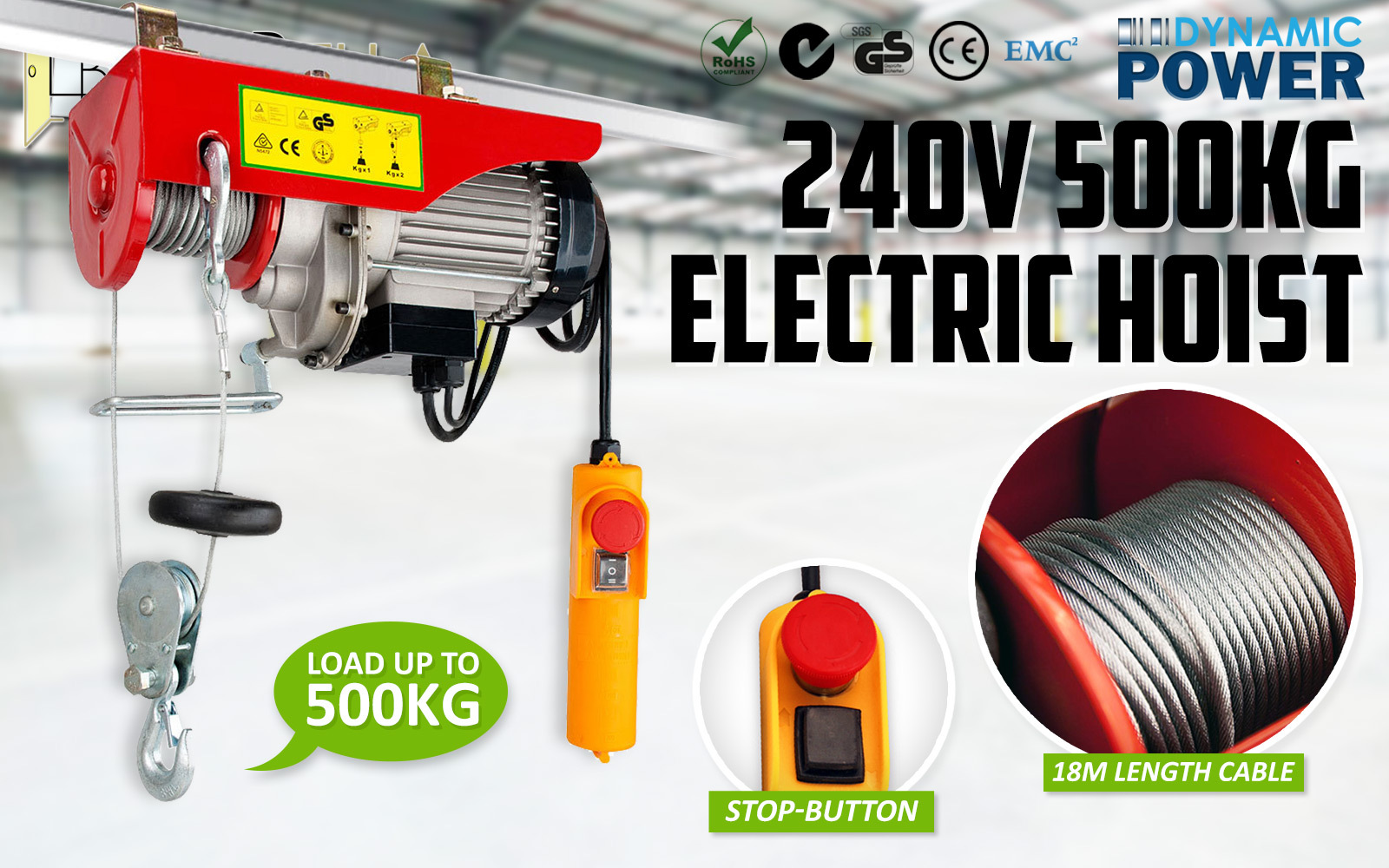

1020w 250/500KG Electric Hoist 240V

Details

Stop busting your ring spanner trying to lift things the hard way!

Make you life a breeze and keep the health and safety geezer happy at the same time.

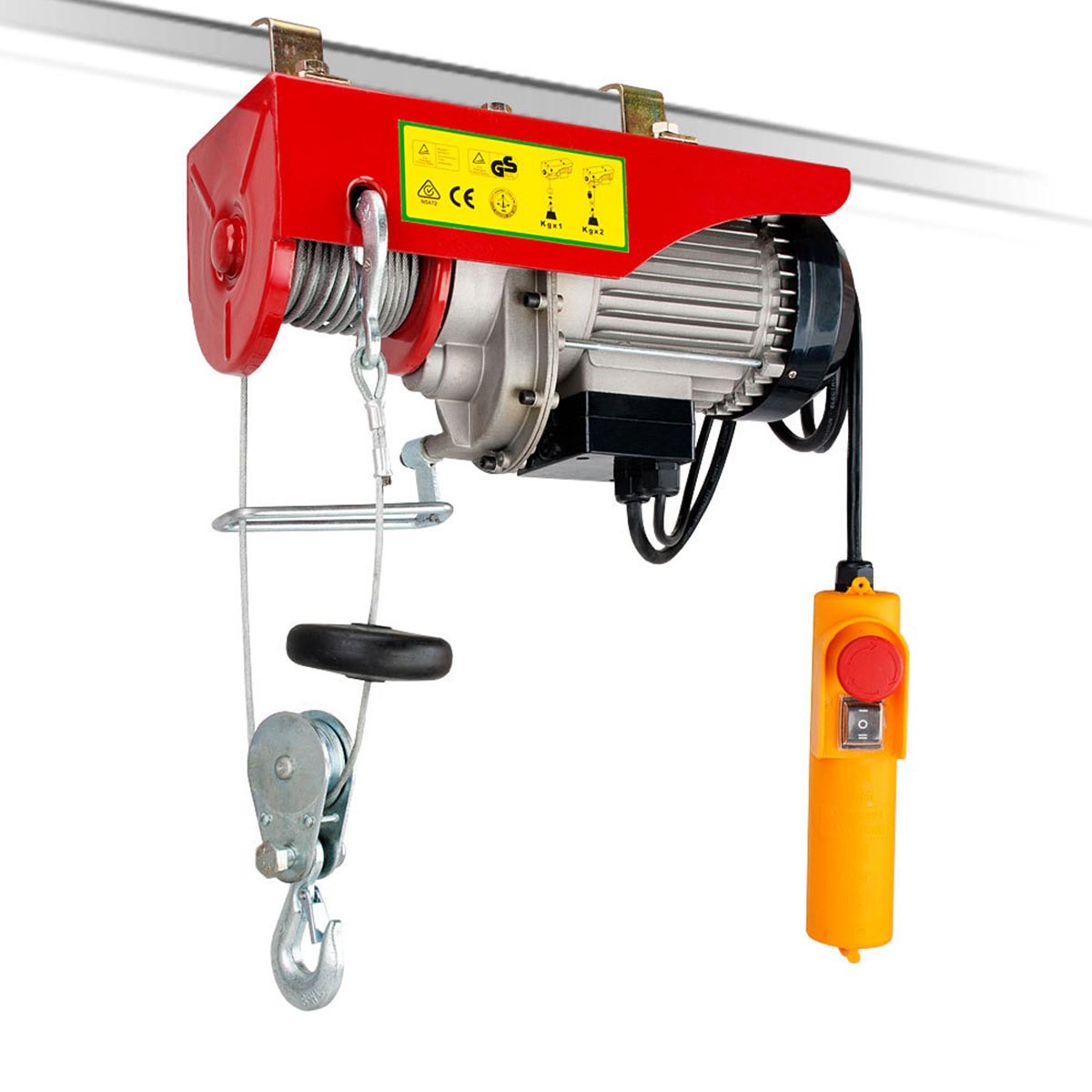

This electric winch (hoist) can be bolted to an overhead beam or engine lifter to make short work of any lifting jobs you have around the workshop.

The Electric Hoist is powered by Lateral-Magnetic Single-Phase capacitance motor and fully featured compact lifting solution you've been looking for. Capable of reaching a maximum height of 18m, it carries a maximum load of 500kgs using a clever dual pulley and is power by a 1020W commercial cycle motor.

Product Features

Powered By Lateral-Magnetic, Single-Phase Capacitance Motor

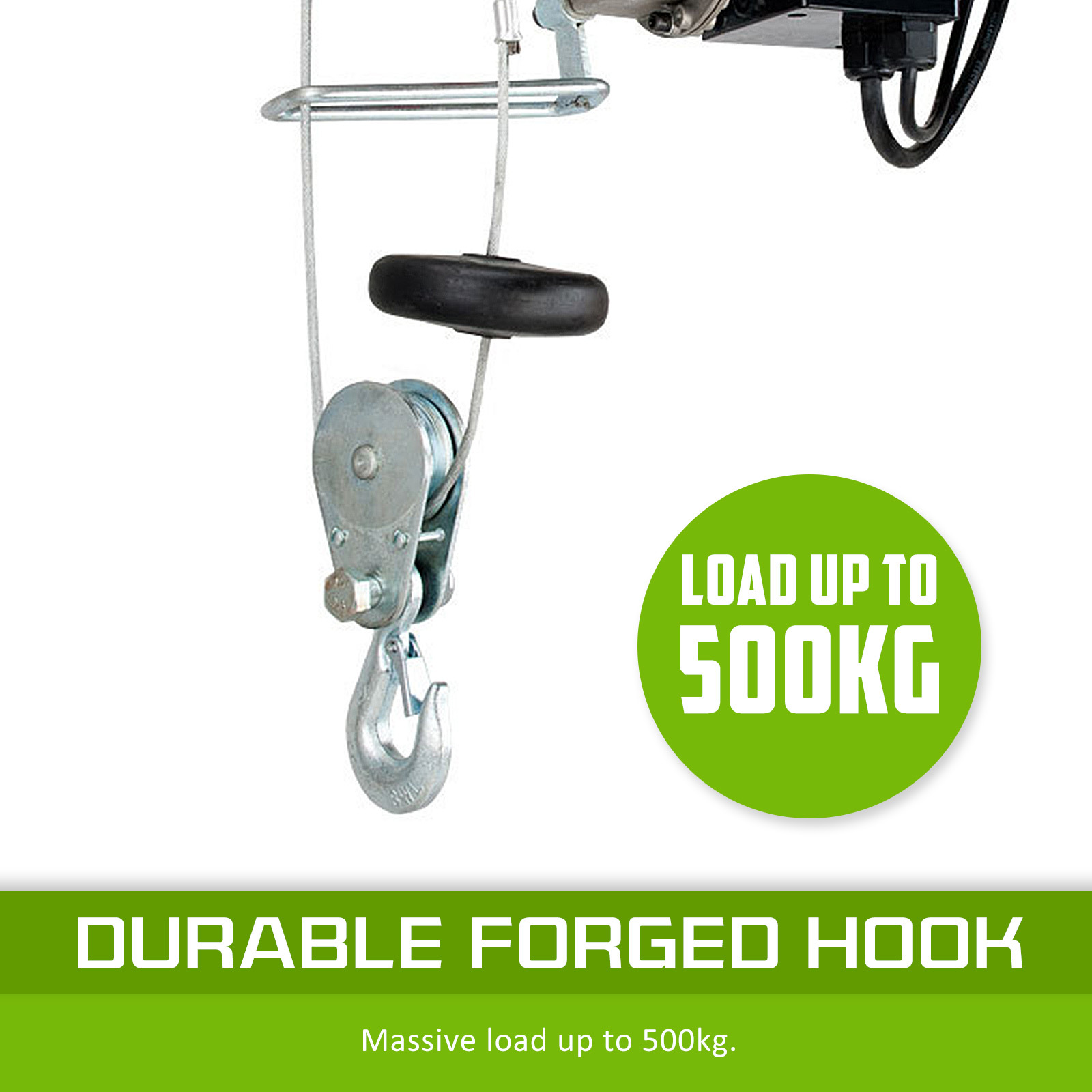

Single Rope Capacity 250kgs / Double Rope Capacity 500kgs used to Hoist Heavy Things
Upwards and Downwards Control at your Fingertips
Capable of reaching a maximum height of 18m

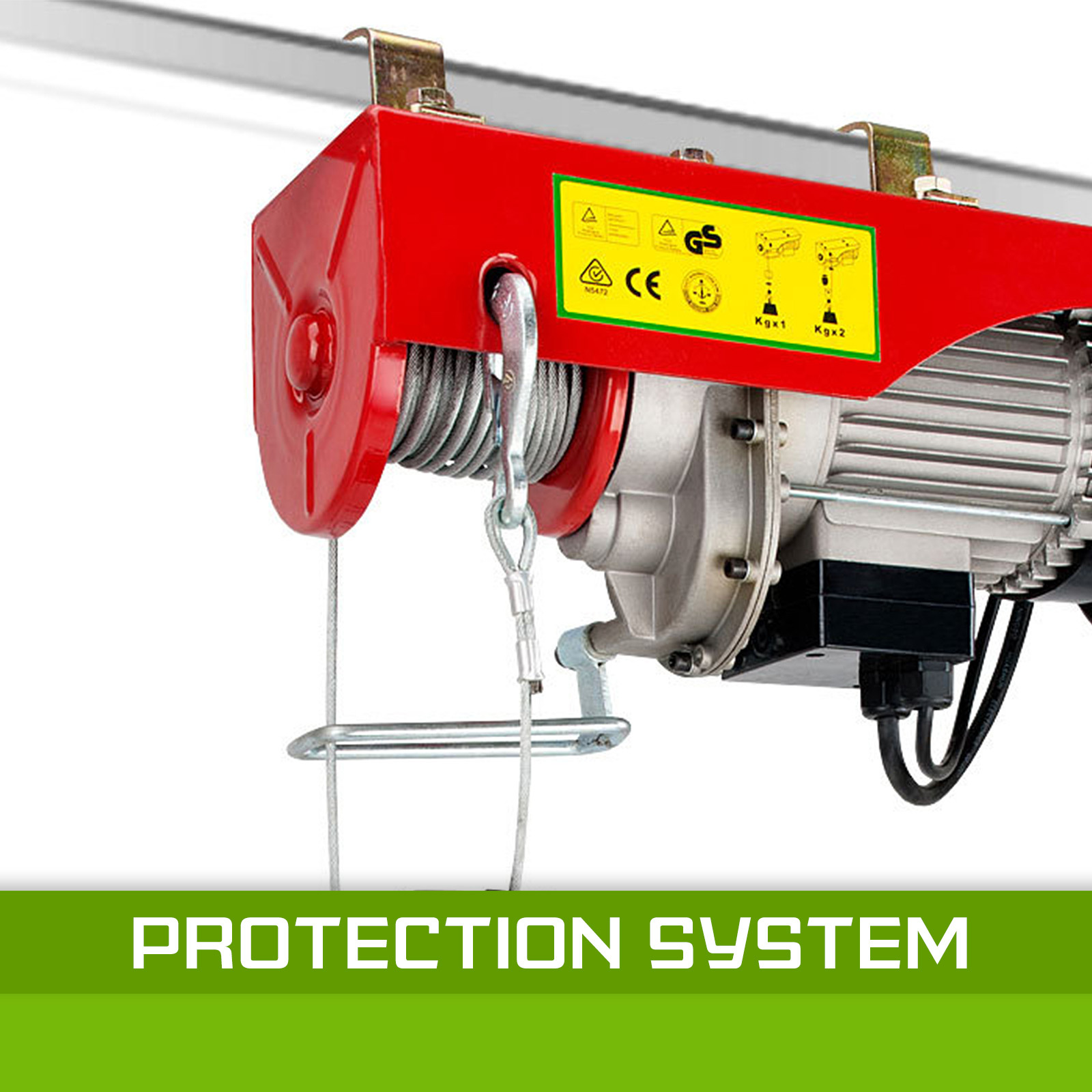

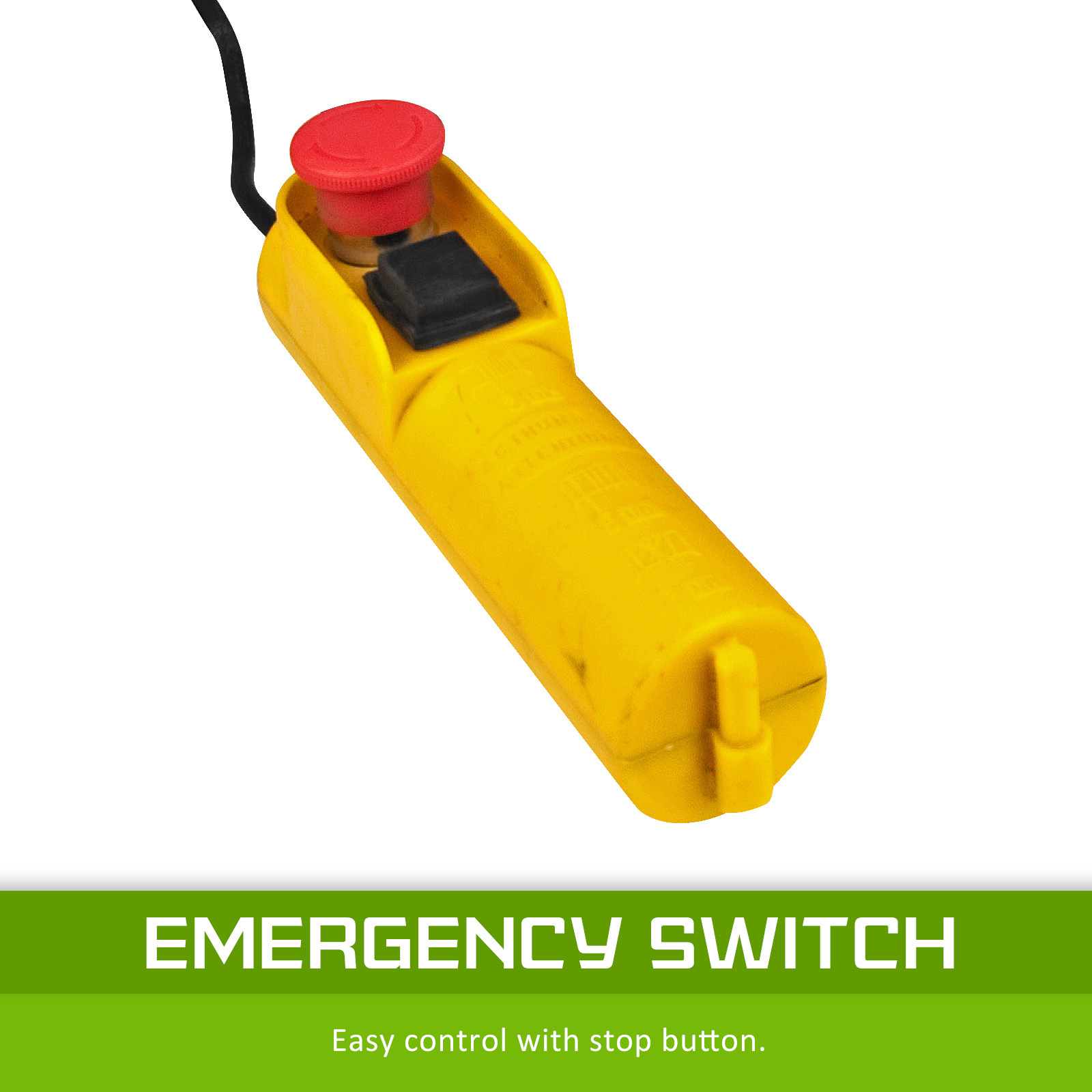

Emergency Stop Switch, Anti-Heat Device and Limit Device to cut the power supply when the hoist is hyper-extended to ensure operational safety
Lift-Descend-Reset and boasts an impressive lift speed of 10 meters/min when utilizing single line lift or 5 meters/min when utilizing double line lift

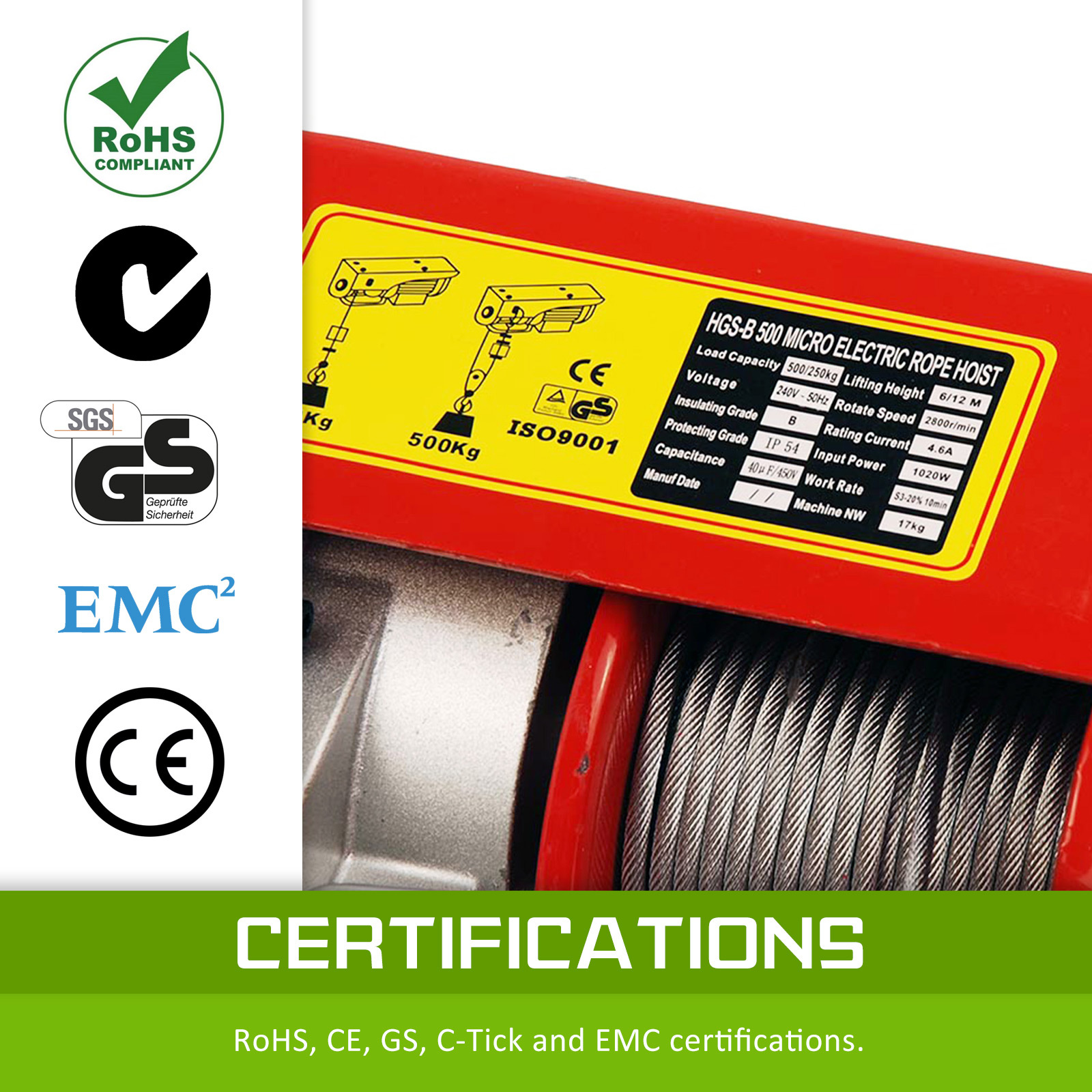

Cert: CE, GS and EMC Approval
Note: The Electric Hoist is only suitable for vertical lifting

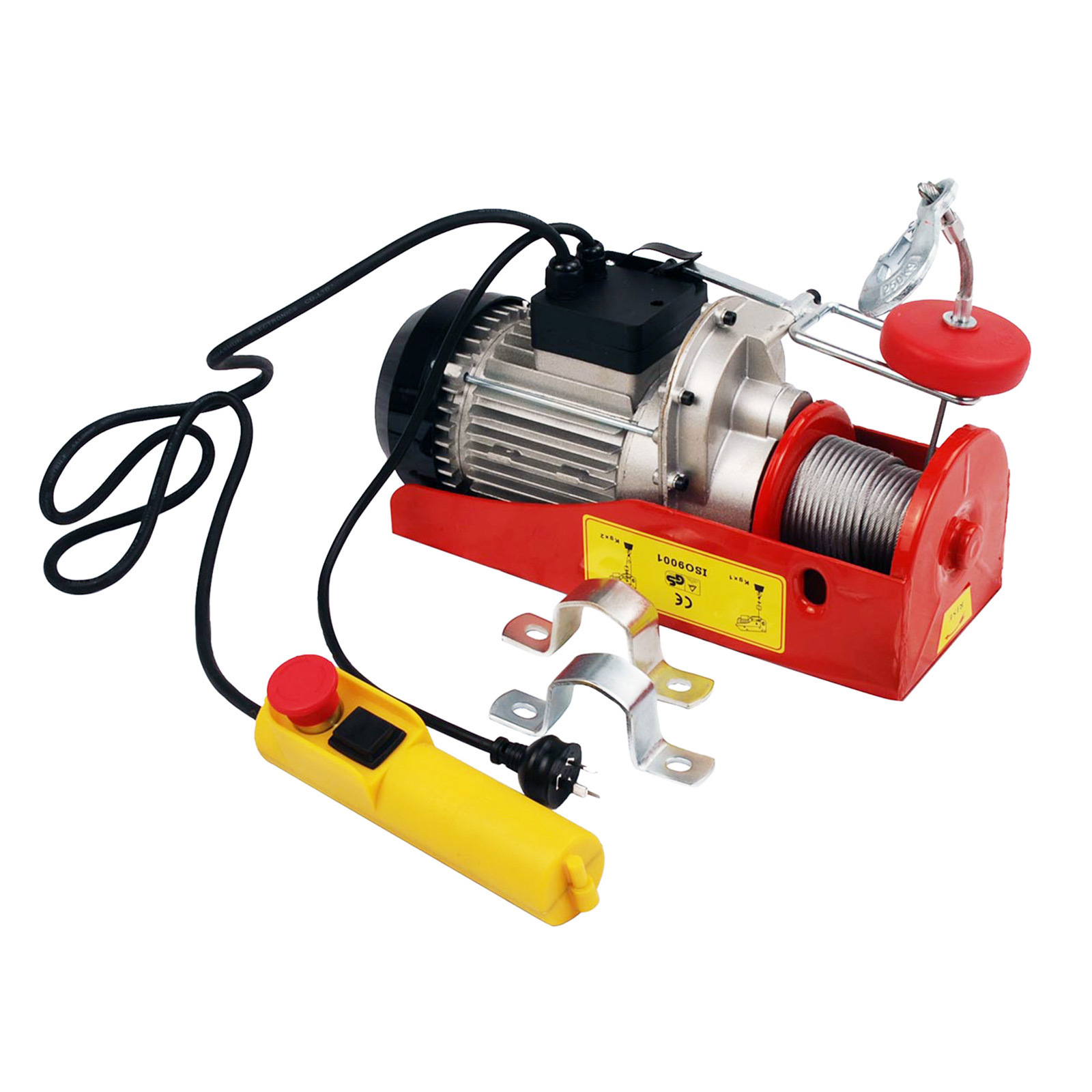

Package Included

Hoist Unit
Remote Control
Hook

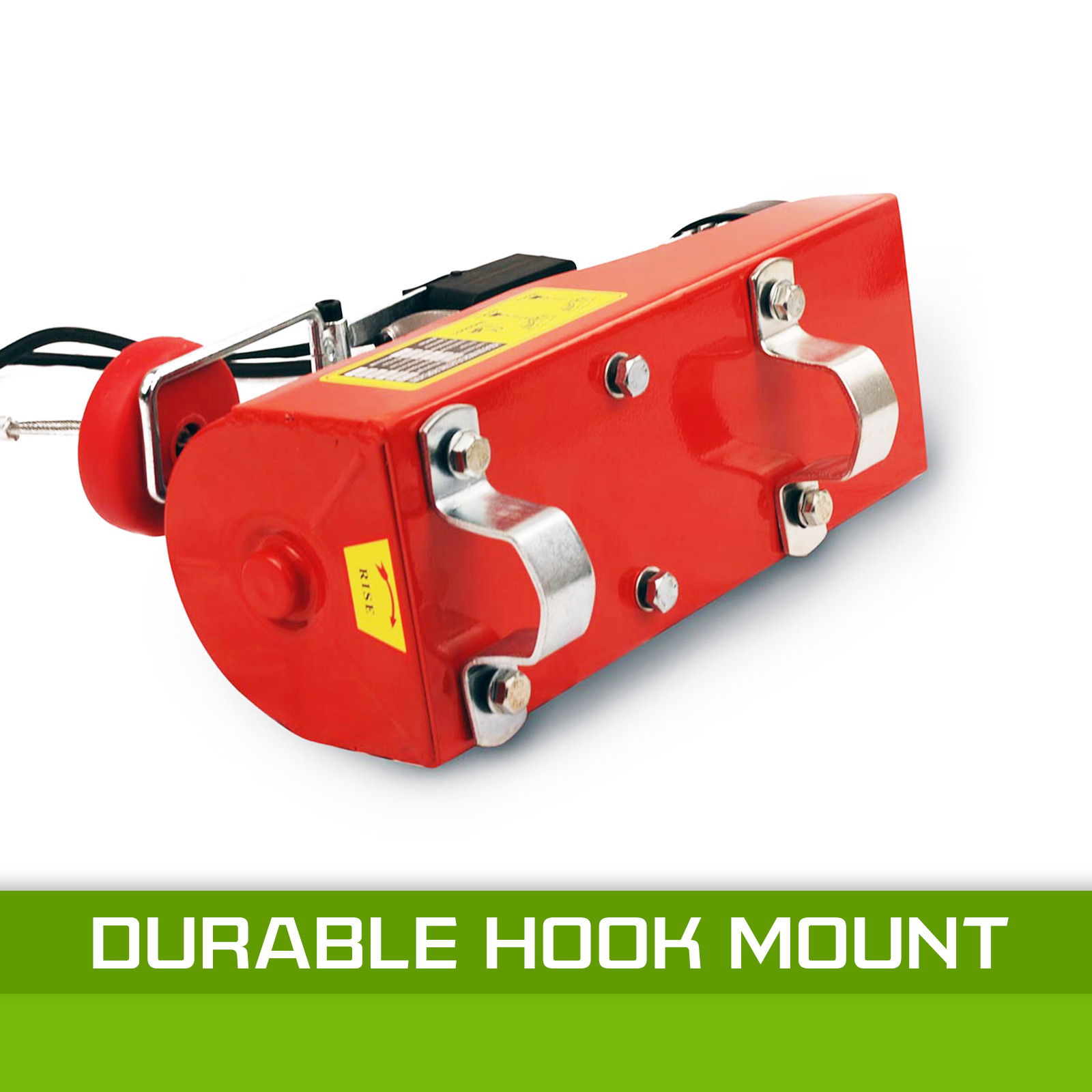

Fixed Mount
Screws and Washers
Instruction Manual

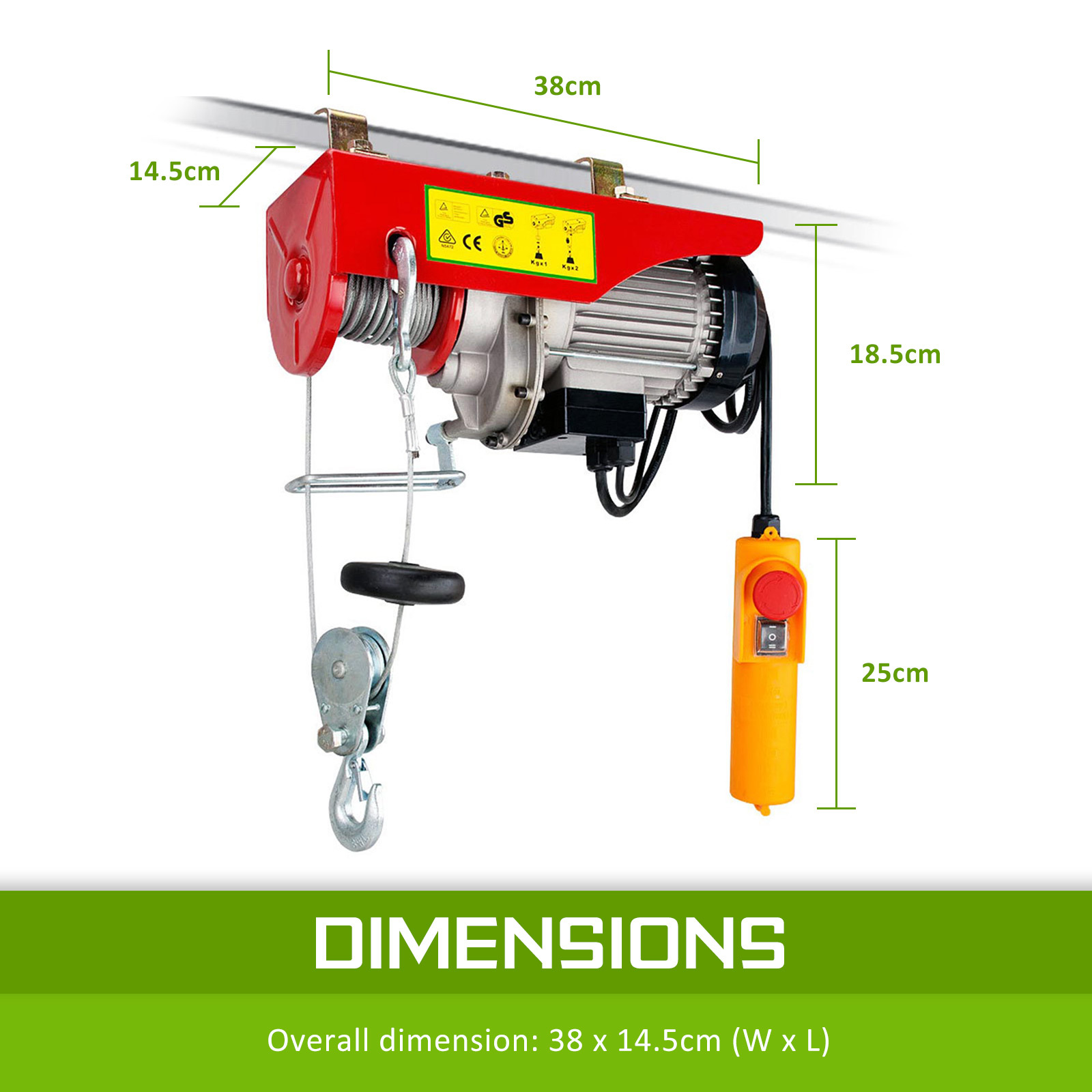

Specifications

Brand: Dynamic Power
Single Rope Capacity: 250Kg
Double Rope Capacity: 500Kg
Max. Spindle Stoke:Lifting Height(Single Rope): 18m
Max. Spindle Stoke:Lifting Height(Double): 9m
Lifting Speed(Single Rope): 10m/min
Lifting Speed(Double Rope): 5m/min

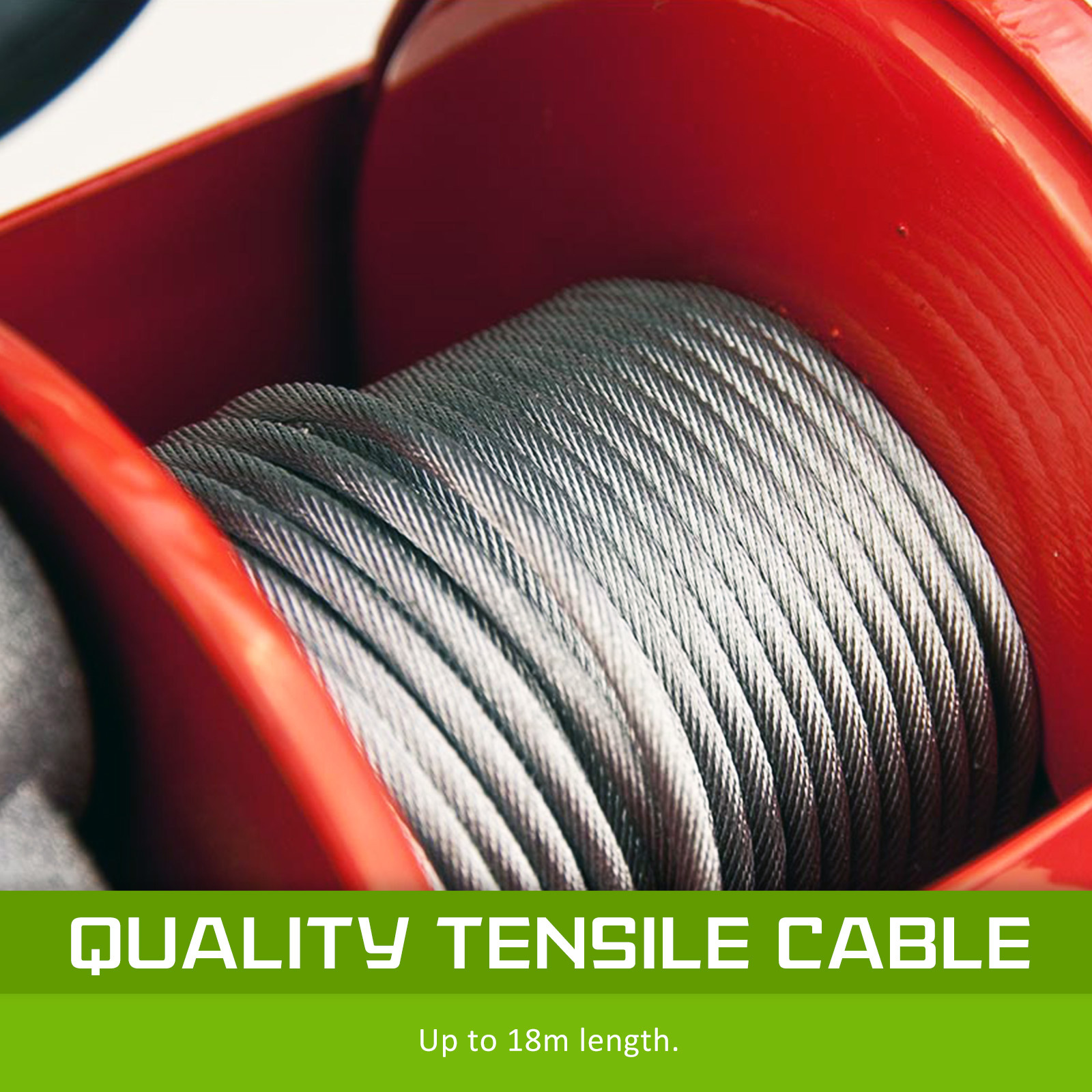

Cable Length: 18m
Cable Diameter: 4.2mm
Switch Cable Length: 1.7m
Resister Cable: >=1300Kg
Main Voltage: 240V/50Hz
Motor Performance: 1020W
Service: S3 20%/10min
Gross Weight: 18kg
